4000m PLENUM Self Supporting 96 Core Fiber Optic Cable

  • 1
  • 2

Brand Name : Geto Telecom

Model Number : ADSS

Certification : ISO 9001: 2015

Place of Origin : China

MOQ : 1000M

Price : 0.3

Payment Terms : L/C, T/T

Supply Ability : 3000 M/Day

Delivery Time : 5-8 Days

Packaging Details : Drum

Product Name : ADSS Optic Fiber Cable

Fiber Type : ITU G652D ,G657A,OM1,OM2,OM3,OM4

Fiber Core : 4-96 Cores

Application : self supporting outdoor fiber optic cable

Armored : Yes

Operating Temperature : -40℃ to + 70℃

Out sheath : Black Polyethylene (PE)

Packing : 1km/2km/4km/roll

Color : Black, Usually Black Color, blue or others, Aqua, yellow

Jacket material : LSZH, PVC, PE, TPU, PVC/LSZH

Sheath : MDPE/HDPE, PLENUM, LSZH, PVC, ect

Strength member : steel wire, Metallic wire, FRP

Contact Now

ADSS Optic Fiber Cable ADSS Cable ADSS Fiber Cable


Description

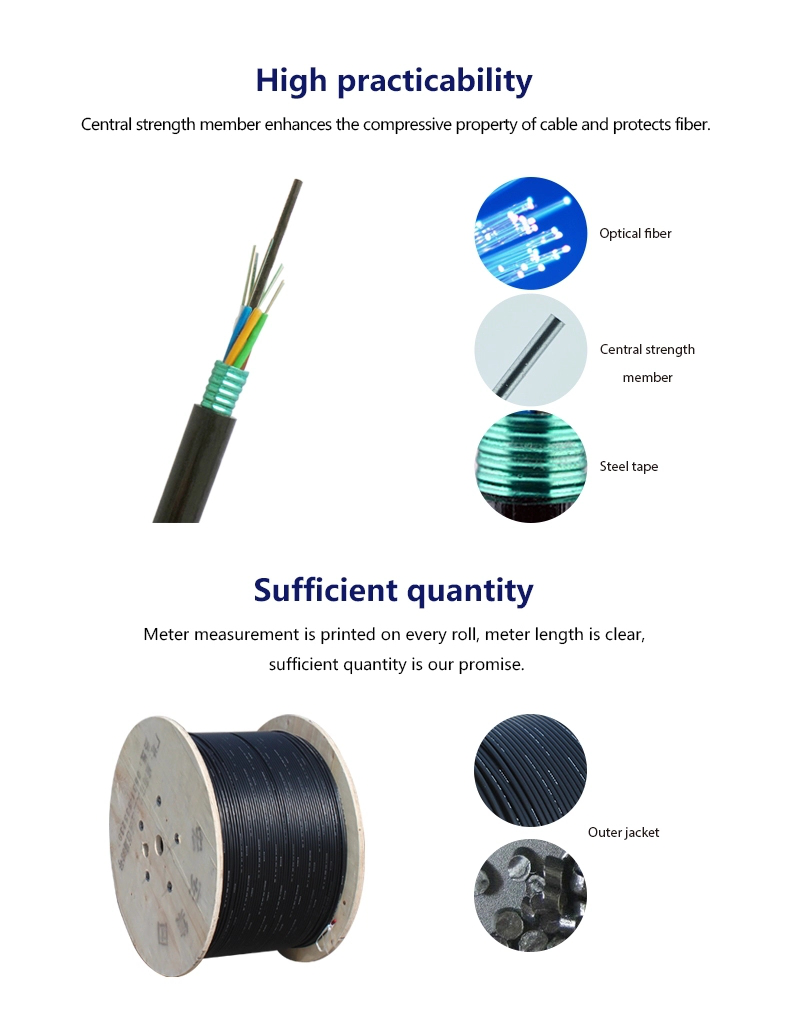

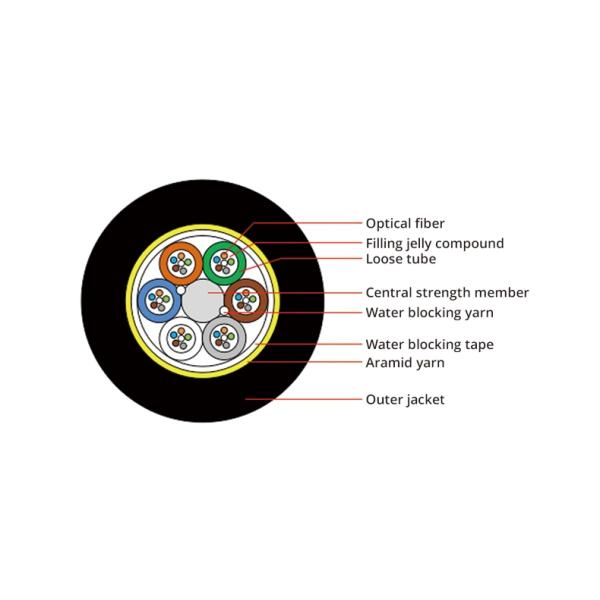

ADSS Optical fibers are placed inside filled buffer tubes containing gel. The core is constructed by stranding the buffer tubes around a central strength member. The core is covered with a water-blocking tape. Aramid yarns and a black outer sheath are applied. Ripcord is included under outer sheath for ease of entry


Characteristics


Excellent water-blocking performance;


Excellent resistance to lateral pressure, and mechanical and temperature performance.


Excellent performance of resistance to electromagnetic interference.


Specification



Single Sheath ADSS (loose tube stranding, Non-metal strength member, Half dry water-blocking, PE inner sheath, Aramid yarn strength member, PE outer sheath)


Item62.5μm(OM1)
850nm/1300nm
50μm(OM2)
850nm/1300nm
G. 652
1310nm/1550nm
G. 655
1550nm/1625nm
Attenuation Of Maximum Value(dB/km)3.5/1. 53.5/1. 50. 36/0. 220. 22/0. 26
Attenuation Of Typical Value(dB/km)3.5/1. 53.0/1. 00. 35/0. 210. 21/0. 24

Structure parameters:
Fiber countStructureFibers per tubeLoose tube diameter
(mm)
CSM diameter/pad diameter(mm)Thickness of outer jacket(mm)Cable diameter(mm)Cable weight
(kg/km)
41+642.0±0.12.3/2.31.7±0.110.5±0.580
61+662.0±0.12.3/2.31.7±0.110.5±0.581
81+642.0±0.12.3/2.31.7±0.110.5±0.581
121+662.0±0.12.3/2.31.7±0.110.5±0.581
241+662.0±0.12.3/2.31.7±0.110.5±0.583
361+662.0±0.12.3/2.31.7±0.110.5±0.583
481+6122.2±0.12.6/2.61.7±0.111.3±0.597
721+6122.2±0.12.6/2.61.7±0.111.3±0.598
961+8122.2±0.13.0/3.91.7±0.112.5±0.5122


Cable TypeDrum
Height(mm)Width (mm)Inner Diameter (mm)Length (Km)Drum Type
ADSS-49007605002Plywood wood drum
ADSS-69007605002Plywood wood drum
ADSS-89007605002Plywood wood drum
ADSS-129007605002Plywood wood drum
ADSS-249007605002Plywood wood drum
ADSS-369007605002Plywood wood drum
ADSS-489507605002Plywood wood drum
ADSS-729507605002Plywood wood drum
ADSS-9612007606502Plywood wood drum
